AgruSafe Double Containment

  • May 31, 2016

More Choice from Agru

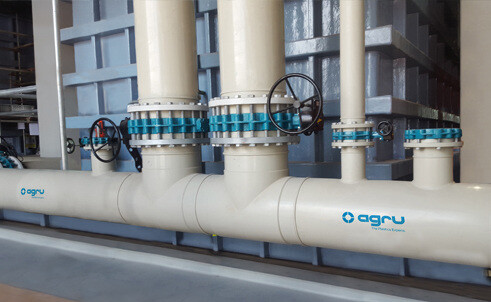

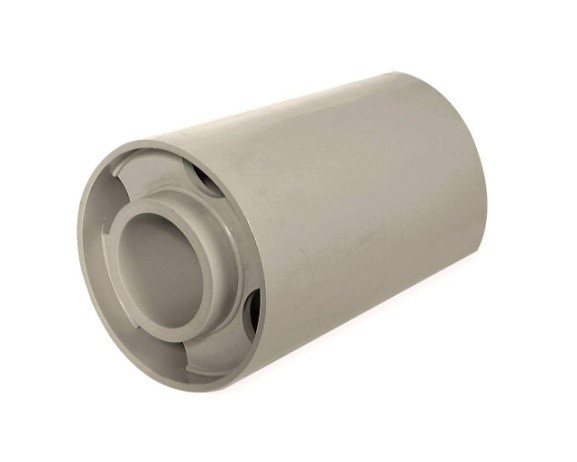

AgruSafeAgruSafe double containment is fabricated from separate pipes, and is available in Polypropylene, PVDF, and HDPE.  It is manufactured by AGRU using the latest production and fabrication techniques to ensure maximum systems integrity.

AgruSafe is available with carrier pipe sizes as small as DN 25mm, however it is especially suitable for larger diameter systems. The standard range features carrier pipe diameters in sizes up to DN 250mm, but it is commonly manufactured in larger sizes up to 600mm. It is ideal for industrial and process waste lines as well as for pressurised transfer piping.

Typical applications are found in pharmaceutical and semi-conductor plants, steel mills, plating shops, or in the chemical and nuclear industries.

Standard butt-fusion welding techniques are used where carrier pipes and containment pipes of the same material are used. Welding of the carrier and containment pipe takes place simultaneously.

AgruSafe systems are available in a variety of pressure ratings - up to PN16 - to suit the application. Using the wide range of pressure rated pipe and fittings - for example PN 3.2, PN 6 or PN 10 - it is possible to optimise the cost effectiveness of the system.

For further details, please contact any of the sales team.
