Sampling systems play a crucial role in ensuring the quality and accuracy of various processes, from pharmaceutical manufacturing to environmental monitoring. They allow for the collection of representative samples that can be analyzed to make informed decisions and maintain regulatory compliance. Swissfluid's commitment to excellence and innovation has made them a trusted partner in this field.
At the heart of Swissfluid's success lies their dedication to Swiss precision. Every aspect of their sampling systems, from design to production, is executed with meticulous attention to detail. This commitment to quality is reflected in the durability and reliability of their products, which are known for their long service life and minimal maintenance requirements.
Swissfluid's manufacturing facility in Lenzburg is a testament to their commitment to excellence. Spanning over 5000 m² (50,000 ft²), it houses state-of-the-art machinery and equipment, allowing for the efficient production of high-quality sampling systems. The facility is designed to optimize workflow and ensure the highest standards of quality control at every stage of production.
One of the key strengths of Swissfluid is their ability to tailor their sampling systems to meet the specific needs of their clients. Whether it's a small-scale laboratory application or a large-scale industrial process, Swissfluid's team of experts works closely with their customers to understand their requirements and develop customized solutions. This personalized approach sets them apart from their competitors and ensures that their clients receive sampling systems that are perfectly suited to their unique needs.
In addition to their commitment to precision and customization, Swissfluid places great emphasis on continuous innovation. They are constantly researching and developing new technologies and techniques to improve the efficiency and effectiveness of their sampling systems. This dedication to innovation allows them to stay at the forefront of the industry and provide their clients with cutting-edge solutions.
Swissfluid's reputation as a leader in sampling systems extends beyond Switzerland. Their products are trusted by clients around the world, who rely on their precision and reliability to ensure the accuracy of their processes. With a global network of distributors and partners, Swissfluid is able to provide support and service to their clients wherever they may be.

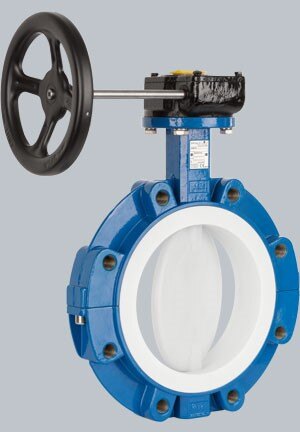

SBP Butterfly Valves, Fluoropolymer-Lined
Fluoropolymer-Lined SBP Butterfly Valves are proven high quality process valves for a wide range of applications. They are used in such diverse industries as chemical, petrochemical, pharmaceutical, pulp and paper, mining, and associated fields. They are suitable for installation in piping systems in accordance with DIN PN10/16 or ANSI 150lbs, fitting flanges per EN 1092 or ASME B16.5. Face-to-face dimensions are in accordance with EN 558-1 row 20, as well as ASME B16.10.
SBP bodies are available in wafer-style, with integrated centering lugs, or in lug-style with threaded bolt holes. Depending on the application the 2-part bodies can be made from epoxy-coated ASTM A216 WCB cast steel (1.0619), from CF-8M (AISI 316SS) Stainless Steel (1.4408), or from AISI 316L (1.4404). Integrated ISO 5211 mounting flanges allow direct mounting of 90° actuators. A key feature of SBP Butterfly Valves is the slim profile, bubble-tight 1-piece disc/stem assembly which maximizes flow capacity and offers polished sealing surfaces for leak-proof performance. Disc cores are made from ASTM A240 Duplex SS (1.4462), and the thoroughly anchored encapsulation guarantees the required bonding strength for vacuum applications.
Customers benefit greatly from the extended life span and hysteresis-free characteristics of Swissfluid Butterfly Valves during control applications. Liners with wide sealing grooves eliminate the need for additional gasketing by the end-user. Replacement of our liners is easily accomplished in the field.
Body liners made from highly stable materials such as PTFE, PTFE-AS (anti-static), PTFE-T (for vacuum service), UHMWPE or PVDF are readily available. Discs can be encapsulated with PFA, PFA-AS (anti-static), ETFE or Polypropylene. Discs can also be furnished in solid one-piece construction from 1.4462 Duplex SS, welded 316L SS, grade 2 Titanium, Hastelloy C, or special alloys. The notched stem with the rated breaking point outside the valve is an important additional safety feature for environmental protection. Of course proper safety factors always have to be considered for pneumatic or electric actuator applications.
EN 12266-1 and API 598 – required tightness is met across the entire pressure and temperature range from -40°C (-40°F) to 230°C (446°F) resp. 1mbar (0.01psi) to 16 bar (232psi) with features such as high-strength body halves connections, maintenance-free shaft sealing per TA-Luft (VDI 2440) and elastomeric backing of the liner. Highly corrosive, abrasive and even toxic liquids, vapors or poisonous gases constantly challenge the quality, functionality and safety of specified butterfly valves.
Swissfluid's lined SBP Butterfly Valves meet and exceed all criteria in the harshest environments!

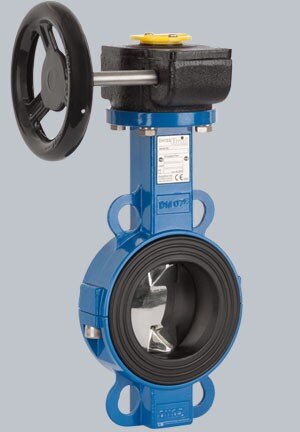

SBE Butterfly Valves, Elastomer-Lined
SBE Butterfly Valves are well established elastomer-sealing process valves used in a wide range of applications in such diverse industries as chemical, petrochemical, pharmaceutical, pulp and paper, mining, and associated fields. The combination of EPDM (liner) and encapsulated disc (PFA) is perfectly suited for low-concentration acids and lyes containing solids. They are suitable for installation in piping systems in accordance with DIN PN10/16 or ANSI 150lbs, fitting flanges per EN 1092 or ASME B16.5. Face-to-face dimensions are in accordance with EN 558-1 row 20, as well as ASME B16.10.
SBE bodies are available in wafer-style, with integrated centering lugs, or in lug-style with threaded bolt holes. Depending on the application the 2-part bodies can be made from epoxy-coated ASTM A216 WCB cast steel (1.0619), from CF-8M (AISI 316SS) Stainless Steel (1.4408). Integrated ISO 5211 mounting flanges allow direct mounting of 90° actuators. A key feature of SBE Butterfly Valves is the slim profile, bubble-tight 1-piece disc-stem assembly, which maximizes flow capacity and offers polished sealing surfaces for leak-proof performance. Disc cores are made from ASTM A240 Duplex SS (1.4462), and the thoroughly anchored encapsulation guarantees the required bonding strength for vacuum applications.
Customers benefit greatly from the extended life span and hysteresis-free characteristics of Swissfluid Butterfly Valves during control applications. Liners with wide sealing grooves eliminate the need for additional gasketing by the end-user. Replacement of our liners is easily accomplished in the field.
Body liners made from highly stable materials such as EPDM, white EPDM, NBR, FPM (Viton), VMQ (Silicone), or SBR are readily available. The disc can be encapsulated with PFA, PFA-AS (anti-static), PVDF or ETFE. Discs can also be furnished in solid one-piece construction from 1.4462 Duplex SS, welded 316L SS, grade 2 Titanium, Hastelloy C or special alloys. The notched stem with the rated breaking point outside the valve is an important additional safety feature for environmental protection. Proper safety factors always have to be considered for pneumatic or electric actuator applications.
Features such as high-strength body halves connections, O-ring shaped sealing lip and the dynamic maintenance-free shaft sealing grant an excellent performance along the entire life span. EN 12266-1 and API 598 – required tightness is met across the entire pressure and temperature range of 1 mbar to 16 bar (0.01psia – 232psi). -40°C to 230°C (-40°F to +446°F) depending on nominal size as well as choice of liner material and disc encapsulation.
Highly corrosive or abrasive and even toxic liquids, vapors or poisonous gases constantly challenge the quality, functionality and safety of specified butterfly valves.
Swissfluid's lined SBE Butterfly Valves meet and exceed all criteria in the harshest environments!

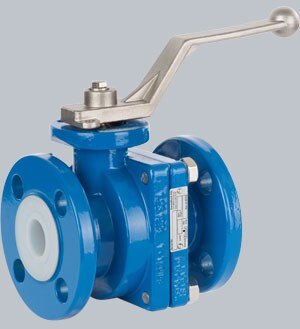

SBV Ball Valves Class 150lbs, SBV Ball Valves Class 300lbs
Swissfluid full-port SBV Ball Valves are fully lined state of the art process valves (ANSI sizes full port ½" to 6", reduced port 6" and above). They have proven themselves in the most demanding chemical and petrochemical applications, as well in such diverse areas as pharmaceutical, pulp and paper, mining, and related industries.They are suitable for flanged piping systems in accordance with ASME B16.5 and EN 1092 specifications. Face to face dimensions adhere to EN 558-1 cat. 1 and ASME B16.10. ANSI 150lbs (and some ANSI 300lbs sizes) as well as DIN PN16/PN40 SBV Ball Valves are available for immediate delivery.
These valves fully adhere to the requirements of the European Pressure Equipment Directive 97/23/EG Appendix III, Module H. Raw material test reports and inspection certificates in accordance with EN 10204 can be furnished on request.
Depending on the intended use, the friction-locked (metal-to-metal) 2-piece bodies are available in epoxy-coated 1.0619 cast steel (ASTM A216 WCB) or in solid 1.4408 stainless steel (CF-8M / AISI 316). ISO top flanges allow quarter-turn actuators to be mounted directly to the valves, eliminating the need for mounting brackets or couplers. A distinguishing feature of Swissfluid SBV Ball Valves is the blowout-proof one-piece ball-stem assembly. This design feature greatly guarantees extended service life of the valve and hysteresis-free control operations.
Long-lasting coating materials of the highest quality, such as PFA, PFA-AS (anti-static), PVDF or ETFE are used for the lining of the bodies and ball encapsulations. One-piece ball-stem assemblies made of solid SS316L, Titanium Gr. 2, Hastelloy C are available as well as ceramic balls with interlocked SS stems. Standard configuration balls offer a full-port cylindrical passage of media. V-Port balls for control applications, Cs configuration and vented balls are also available. The notched stem with the rated breaking point outside the valve is an important additional safety feature for environmental protection.
Leak free requirements over the whole pressure and temperature range of 1mbar to 16 bar resp. -40°C to +200°C (0.01 psi to 232psi / -40°F to +392°F) per EN 12266-1 and API 598 are made possible by the metal-to-metal joint of the 2 body halves, and the maintenance-free dynamically-loaded stem, in accordance with TA Luft (VDI 2440 and DIN EN ISO 15848-1). The choice of body linings and ball encapsulations impact the referenced pressure and temperature ranges. Factory spare parts are easily replaced in the field
Highly corrosive media, hot liquids, steam, toxic gases, etc. in demanding process applications severely test the longevity, quality, functionality and safety of our valves.
Swissfluid fully lined SBV Ball Valves meet and exceed all criteria.
Ball Valves SBV Fully lined Ball Valves for shut-off and control of corrosive, permeating liquids or gaseous media.
Main features• Two-piece body, metal-to-metal joint • Anchored lining with positive locking to body • Dynamic, maintenance-free shaft sealing acc. to TA-Luft • One-piece ball/shaft, blow out proof, core of SS Duplex • Rated breaking point outside of valve • Bodies with optional flange connections PN40 • Ball options such as V-port, C-port, with pressure relief hole • ISO top flange for direct mounting of pneum.
Quarter turn actuators

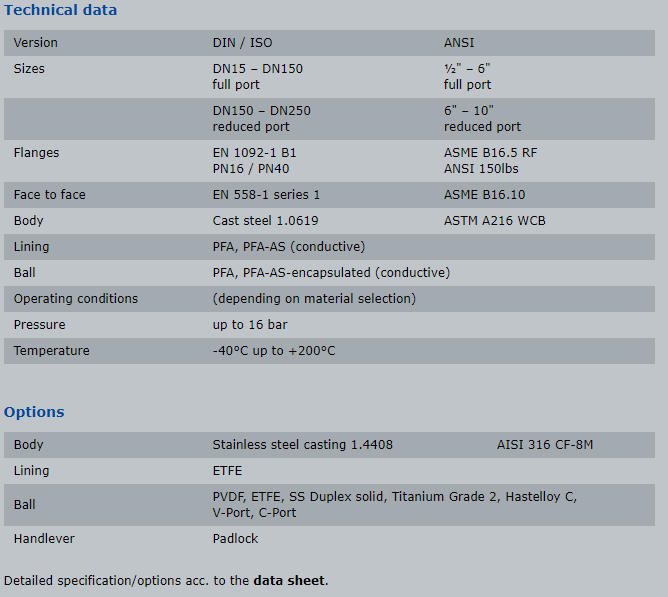

Technical dataVersionDIN / ISOANSISizes DN15 – DN150 full port½" – 6" full port DN150 – DN250 reduced port6" – 10" reduced portFlanges

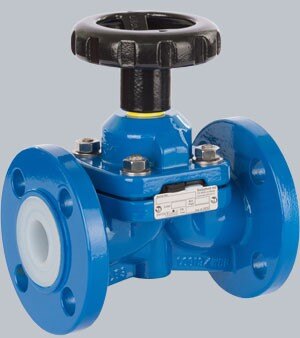

Diaphragm Valve SDV

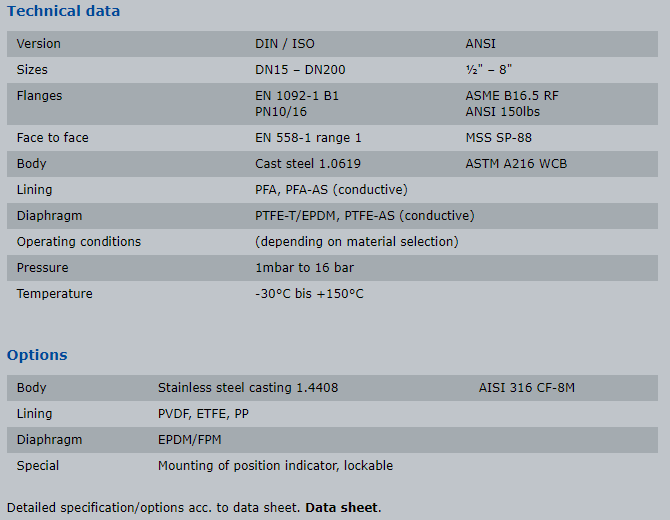

Diaphragm Valves SDVFully lined weir type Diaphragm Valves for shut-off or throttling of corrosive liquids or gaseous media. Due to its cavity free design it is also well suited for high-purity applications. Main features• Proven weir type valve body made of cast steel • Cavity-free design • Installation in any attitude (self-draining) • Force limiting device protecting diaphragm • Yellow sight indicator showing actual position of diaphragm • Easy replacement of components on site .
The key features of the Swissfluid SDV Diaphragm Valve are reliability and simplicity in construction. Its cavity-free and self-draining design make our SDV Diaphragm Valve the preferred choice for chemical and pharmaceutical applications. The simple maintenance and the possibility to replace the diaphragm assembly without having to remove the valve from the line makes this valve also a popular choice in other industries. We offer our SDV Diaphragm Valve in accordance with DIN specification (EN 1092, EN 558-1, cat. 1) as well as ANSI (ASME B16.5, MSS SP-88). The standard configuration consists of a 1.0619 cast steel body (per ASTM A216 WCB), fully lined with PFA and a PTFE/EPDM diaphragm. This economically priced combination affords the highest chemical resistance against virtually all chemicals. Swissfluid also offers this valve in 1.4408 SS (CF-8M; AISI 316) with a choice of liners such as PFA-AS (anti-static), polypropylene or PVDF, and an optional low diffusion, triple-layer diaphragm. Our SDV Diaphragm Valve can be factory-equipped with pneumatic or electric actuators, making it suitable for automatic on-off applications or in connection with positioners for use as control valves. Actuators are available with polypropylene housings (economical, corrosion-proof, light weight) or with sturdy steel enclosures.
